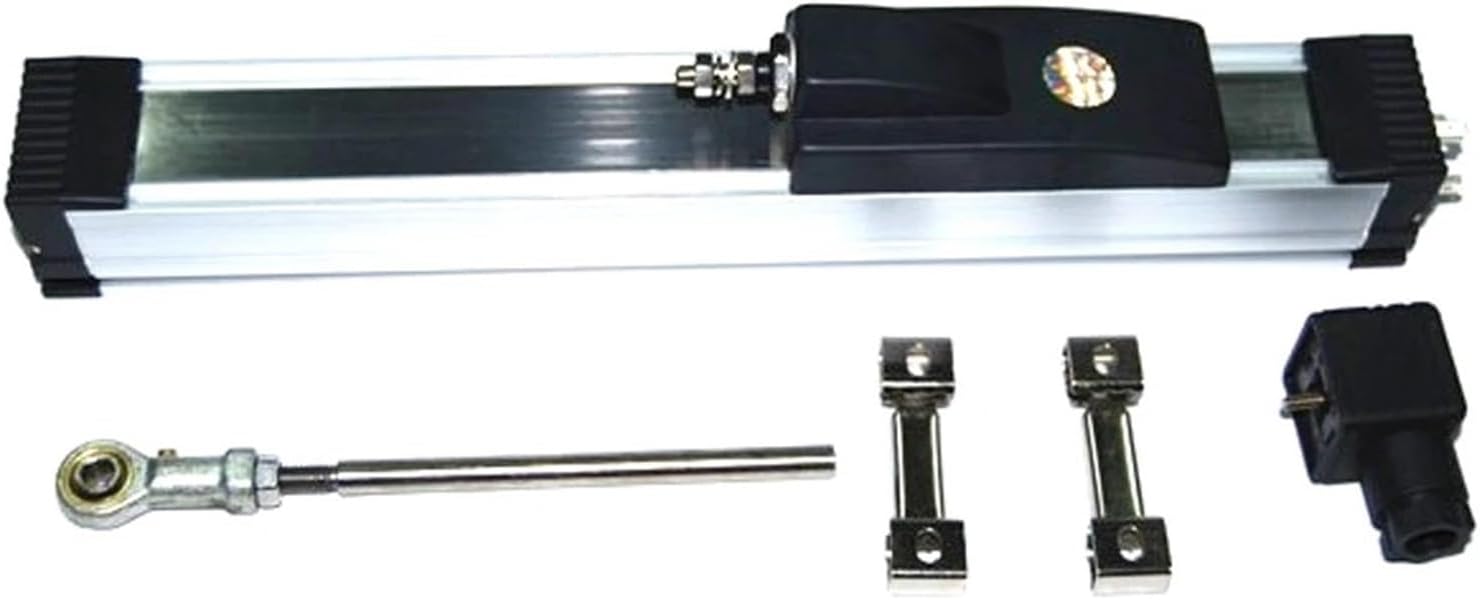

RWRAPS KTF Stroke 75-300mm Slider Linear Transducer Linear Position Sensor Scale for Injection/Rubber Machine (Color : 75mm)

Product discriptionAttention:The stroke is from 75mm-5000mm. If you need different lengths of travel, please contact with the supplier. The default output: 0-100% of the power supply voltage value, which is resistance out put, if you need other signal output, such as 4-20mA, 0-5V, 0-10V,and RS485 signal output Technical ParameterKTF Linear Transducer75~110mm125~175mm200~550mm600~1000mm1150~2000mm2000mmStroke Length(mm)75 100 110125 130 150175 200 225250 275 300325 350 360375 400 425450 475 500550 600 650700 750 800850 900 9501000 1150 1250 1350 1450 15001600 1800 2000 2250 2500 28003000Linear Precision (±%FS)±0.1%±0.05%±0.04%Resistance (±10%)51020Effective Strokerange+3mmResolutionInfiniteRepeatability Precision0.01mmMax Speed10m/SRecommended Current10uAMax Power Supply36VTemperature Coefficientnormal 5 ppm/Kinsulating Strength10MInsulating Strength100uACase Dimension(A)rang e+56mmEffective Strokerang e+8mmMax Bearing Pull50KGWorking Stress<;10Nvertical direction10NVibration Resistance Level5...2000HZ, A max=0.8mm, a max=20gShock Resistance Standard50g, 11msTemperature Range-60~+150Ingress ProtectionIP67(DIN40500/IEC529)Sensitivity1 Temperature DriftinfinitesimalVery long life>100*1000000 cycles,>25*1000000 mApplications: KTF/KTF1 Slide Type is a small type for generic use, suitable for large injection machines, rubber machines, woodworker machines,hydraulic machines and so on.

• 【Plug-and-Play】Featuring a convenient plug-type design, this sensor ensures practicality and ease of use.
• 【Signal Quality】This displacement sensor minimizes signal transmission loss, ensuring reliable and clear data transmission.
• 【Antioxidant Treatment】Resist oxidation and durability; the displacement sensor is exquisite workmanship, which can reduce transmission loss.
• 【Exceptional Build Quality】Crafted with precision, our sensor utilizes high-quality stainless steel material, making it suitable for various conditions.
• 【High Compatibility】Our displacement compatibility with a wide range of input voltages that vary with displacement. This adaptability makes it suitable for diverse applications.
